RANGE OF ROAD SWEEPING MACHINES

EQUIPMENTS FOR ROAD SWEEPING MANAGEMENT FOR THE MUNICIPAL CORPORATION / THE SERVICE PROVIDERS

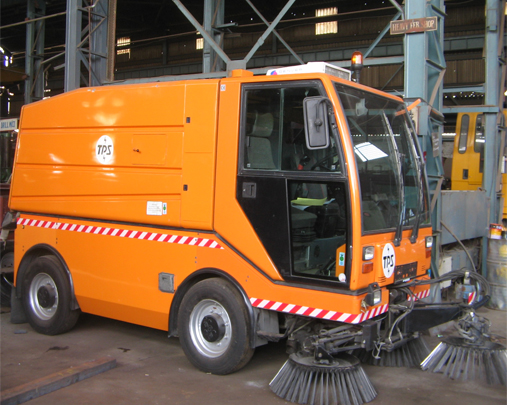

Self Propelled Road Sweeping Machines

5000SP Road Sweeping Machine: The introduction of these machines has revolutionized the road construction industry and simplified innumerable tasks. These are highly specialized and efficient machines, which have a huge market demand and therefore have a great relevance in the industry. Their container capacity ranges from 2000Ltrs up to 5500 Ltrs. These machines are capable of working without the water sprays, however there is a provision for the water spray arrangement.

Characteristics of our Self Propelled Road Sweeping Machine
  • Sturdy
  • Time saving
  • High performance
  • Time efficiency


  • Ride on Type Road Sweeping machine

    The Ride-on Road Sweeping Machine is a highly versatile equipment and is ideally suited for cleaning of roads/parking lot and other large paved areas inside a market Complexes, Residential Areas, Industrial Complexes, Airport Complexes, VIP’s areas etc.

    Some of the salient features of the Road Sweeping Machine are highlighted below:-
    • Container Capacity : 800 Ltrs.
    • Sweeping Width : 2000 mm
    • Fully hydrostatic drive
    • Cartridge Filters with continuous cleaning arrangement during sweeping.
    • Indian Diesel Engine – Ease of maintenance and spare parts
    • High level of maneuverability – Easy movement in restricted spaces
    • All Weather Steel Cabin with all around visibility.

    Small turning radius (2250mm) makes it particularly suitable for sweeping in narrow and confined areas which are not accessible by larger machines.

    It’s hydrostatic drive on rear wheels increases maneuverability and Power, and enables to operate on steep inclines.

  • Railway Track Cleaning Car

    Poor environment and littered premises in and around railway stations had always been an area of concern for Indian Railways. The similar problem has also been felt by Delhi Division particularly in the NCR region where it is not possible manually to clean the track. With a prime focus to improve upon the situation an initiative has been taken by Delhi Division, Northern Railway in association with IRCON for mechanized clearance of litter/ garbage, lying on and alongside the rail track, besides jet cleaning of night soil and other contaminant lying on the railway line at various stations / yards of Delhi division.

    This initiative will benefit rail passengers at large and is aimed towards providing a cleaner and hygienic environment in the division besides reducing maintenance cost.

    A heavy duty vacuum suction equipment mounted on BRN has been manufactured which is fitted with a High Performance, high Capacity Centrifugal Blower with pneumatic clutch arrangement and drive is taken from a Diesel Engine. The Blower provides the suction power for the machine.

  • Truck mounted Road Sweeping Machines

    The Truck Mounted Road Sweeping Machine is a Heavy Duty Equipment having a container Volume of 6500 Ltrs. The Machine is provided with a High Capacity Volume Exhauster, which is driven by an Auxiliary Diesel Engine. Some of the salient features of the machines are listed below:-

    • The Sweeping System consist of One Central Brush, Two side brushes and two section heads. The sweeping is carried out with the help of Central Brush and one of the side brush. The orientation of the Central brush can be adjusted towards right or left as per requirements depending upon the direction of the travel of the machine for cleaning the dirt on right or left side of the road as per requirements.
    • The machine is provide with imported pleated fabric filters, which are automatically cleaned by reverse compressed Air-Jet purging system. Due to the provision of the fabric filters, the machine is capable of undertaking sweeping work in dry mode (without necessity spraying water). The exhaust from the Blower meets PM-10 Pollution Control Norms. However, water tank with water spray system is also provided in the machine for spraying water on the brush as and when required.
    • The machine is provided with a rear suction hose which can be used for suctioning material lying on the right side outside the cleaning path of the machine.
  • Mechanical Runway Sweepers

    TPS Runway Sweeping Machine works on the principle of ‘Vacuum Suction’. The Dirt Container provided is with cyclonic separator and mesh filters, which separates the heavy particles from the air stream, due to the centrifugal action and then drops it into the container.

    Features
    • Full Access Control
    • Panel Adjustable / Flexing
    • Casting Roller for Sucker
